How to install Nginx with SPDY in centos linux from source code

How to installing Nginx from source code?


Nginx is very popular web server. With spdy we can make nginx sever much faster and secure.  SPDY main goal is to reduce load latency by compression, multiplexing and prioritization . SPDY only works in SSL ( https) . In this blog, we will learn how to install nginx with spdy. Setting and configuring nginx with spdy will be covered in seperate blog.


Step 1: Get the latest Nginx from

 $ wget
 $ tar -xzf nginx-1.7.3.tar.gz

Step 2: Configure Nginx  with SPDY.

Along with spdy i am adding few more options to nginx which is generaly required in web servers. But based on own requirement we can add or reduce these extra parameters.  So go to nginx folder as above and do the following:


$ cd nginx-1.7.3
 $  ./configure --prefix=/etc/nginx --sbin-path=/usr/sbin/nginx --conf-path=/etc/nginx/nginx.conf --error-log-path=/var/log/nginx/error.log  --http-log-path=/var/log/nginx/access.log  --pid-path=/var/run/ --lock-path=/var/run/nginx.lock  --http-client-body-temp-path=/var/lib/nginx/body  --http-fastcgi-temp-path=/var/lib/nginx/fastcgi --http-proxy-temp-path=/var/lib/nginx/proxy --with-http_ssl_module  --with-http_spdy_module --with-http_realip_module  --with-http_gunzip_module   --with-http_gzip_static_module  --with-http_stub_status_module  --user=nginx group =nginx
$ make
 $ make install


Above will install Nginx with spdy.

Step 3: Add Nginx as user ( you can set different users as you want):


$ useradd -M -r --shell /sbin/nologin --home-dir /opt/nginx nginx


Step 4: Create Nginx demon:

$ wget -qO /etc/init.d/nginx
$ chmod +x /etc/init.d/nginx

Set chkconfig run:

chkconfig --add nginx
chkconfig --level 345 nginx on

Step 5: Nginx is now setup so start nginx server:

service nginx start

Setting domains config:

Step 1: I prefer to put all my domains config file in seperate folder so that it will be easy to manage. To do that lets create the folder called vhosts in /etc/nginx/vhosts.

$ cd /etc/nginx
$ mkdir vhosts

Step 2: Create a domain config file for example and put your domain setting there.

Example of basic nginx domain config file with spdy enable:

 server {
 error_log /var/log/domain.com_error_log warn;
 listen ssl spdy;
 access_log /var/log/ bytes_log;
 access_log /var/log/domain.com_access_log combined;
 root /home/domain/public_html;
ssl_certificate /etc/nginx/ssl/;
 ssl_certificate_key /etc/nginx/ssl/myserver.key;
 ssl_protocols SSLv3 TLSv1 TLSv1.1 TLSv1.2;
 ssl_ciphers RC4:HIGH:!aNULL:!MD5;
 ssl_prefer_server_ciphers on;
 keepalive_timeout 60;
 ssl_session_cache shared:SSL:10m;
 ssl_session_timeout 10m;
  location ~ \.php$
    {        fastcgi_pass;        fastcgi_index index.php;        fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;        include fastcgi_params;    }     # deny access to apache .htaccess files    location ~ /\.ht    {        deny all;    }}
Above is just an example, configuring nginx server will be covered in seperate blog.

Step 3: Nginx server configuration. This will be seperate topic but for the basic setup you can look below to get the idea.

Nignx config file will be in /etc/nginx/nginx.config

Example of nginx config:
# run as user nginx
user nginx;

# number of workers, general its number of cpu in your server.
 worker_processes 2;

# log critical errors in given location
 error_log /var/log/nginx/error.log crit;
worker_rlimit_nofile 20480;
 events {
 worker_connections 5120; # increase for busier servers
 use epoll; # you should use epoll here for Linux kernels 2.6.x
http {
 open_file_cache max=2000 inactive=20s;
 open_file_cache_valid 30s;
 open_file_cache_min_uses 2;
 open_file_cache_errors on;
 # access_log off;
 server_name_in_redirect off;
 proxy_headers_hash_max_size 1024;
 proxy_headers_hash_bucket_size 1024;
 server_names_hash_max_size 10240;
 server_names_hash_bucket_size 1024;
server_names_hash_max_size 10240;
 server_names_hash_bucket_size 1024;
 include mime.types;
 default_type application/octet-stream;
 server_tokens off;
 sendfile on;
 tcp_nopush on;
 tcp_nodelay on;
 keepalive_timeout 5;
 gzip on;
 gzip_vary on;
 gzip_disable "MSIE [1-6]\.";
 gzip_proxied any;
 gzip_http_version 1.1;
 gzip_min_length 1000;
 gzip_comp_level 6;
 gzip_buffers 16 8k;
 # You can remove image/png image/x-icon image/gif image/jpeg if you have slow CPU
 gzip_types text/plain text/xml text/less text/css application/x-javascript application/xml application/xml+rss text/javascript application/atom+xml image/png image/x-icon image/gif image/jpeg;
ignore_invalid_headers on;
 client_header_timeout 3m;
 client_body_timeout 3m;
 send_timeout 3m;
 reset_timedout_connection on;
 connection_pool_size 256;
 client_header_buffer_size 256k;
 large_client_header_buffers 4 256k;
 client_max_body_size 200M;
 client_body_buffer_size 128k;

request_pool_size 32k;
 output_buffers 4 32k;
 postpone_output 1460;
 proxy_temp_path /tmp/nginx_proxy/;
 client_body_in_file_only on;
 log_format bytes_log "$msec $bytes_sent .";

# load all nginx domain config file in vhosts folder.
include "/etc/nginx/vhosts/*";

How to install APC in centos for PHP better performance ( opcode)

APC for PHP better performance:

APC is a op-code caching for PHP. Once PHP code is run, APC caches the complied PHP code so for next time, time for compiling PHP will be reduce and gives faster performance.  APC caches files in memory so  performance of PHP code improves significantly.

Installing APC:

Make sure PHP is installed first 🙂 . we need to install few pre-requist for PHP.

$ yum install php-pear php-devel httpd-devel pcre-devel gcc make

$ pecl install apc

Configuring APC:

Open APC config file and make sure you have atlest following configuration:

vi /etc/php.d/apc.ini

Enable APC for php.

The number of seconds a cache entry is allowed to idle in a slot before APC dumps the cache.


Size of memory for apc ( 1024 M)


Enable apc stats.


Enable APC for command line php operations.


Allow 2 seconds after a file is created before it is cached. This will prevent premature PHP pages to get cached.


Maximum size of single file that apc can store.


Maximum number of files APC can store ( rotation).


Maximum number of users data entries that APC can store.



You can put your configuration in php.ini file but i prefer to have separate file like above for configuration. Values mentioned above are for demonstration purpose, different values  for APC can be set  which depends on number of PHP pages, size of memory in server, number of page hits e.t.c

Restart httpd server:

service httpd restart


APC installation comes with apc.php file, which can be use to monitor APC performance. This file can be found inside APC package  OR can be download from ( unzip and look for apc.php file).

Once apc.php is downloaded copy it to your domain so that you can assess it.

Now from browser, you can go to I prefer to wait for a day to see the APC performance so we can have clear idea how well our configuration did.

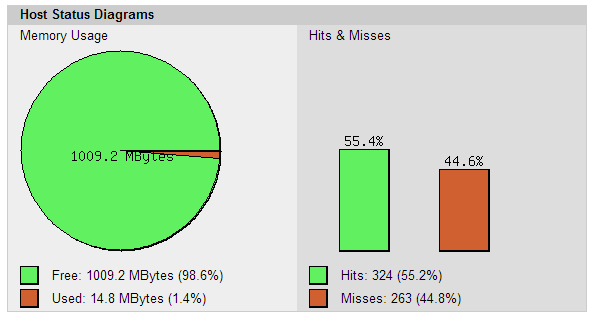

Sample output of APC:

Here, we clearly see that APC is not performing very well as we have 44% misses. To optimize this we can reduce the memory and also we can increase max_file_size and also TTL time so that more can be cached in APC.  Normally when missed rate is more than 10% ,  its better to reconfigure the settings of APC.

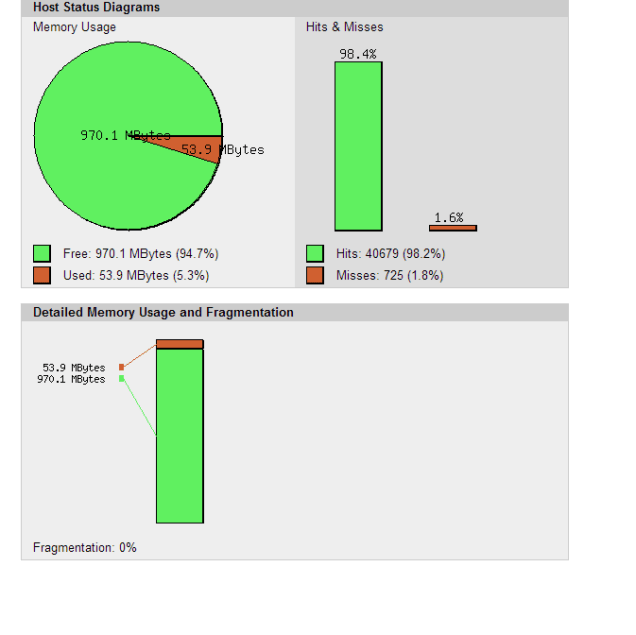

Well tuned APC will look like below:
